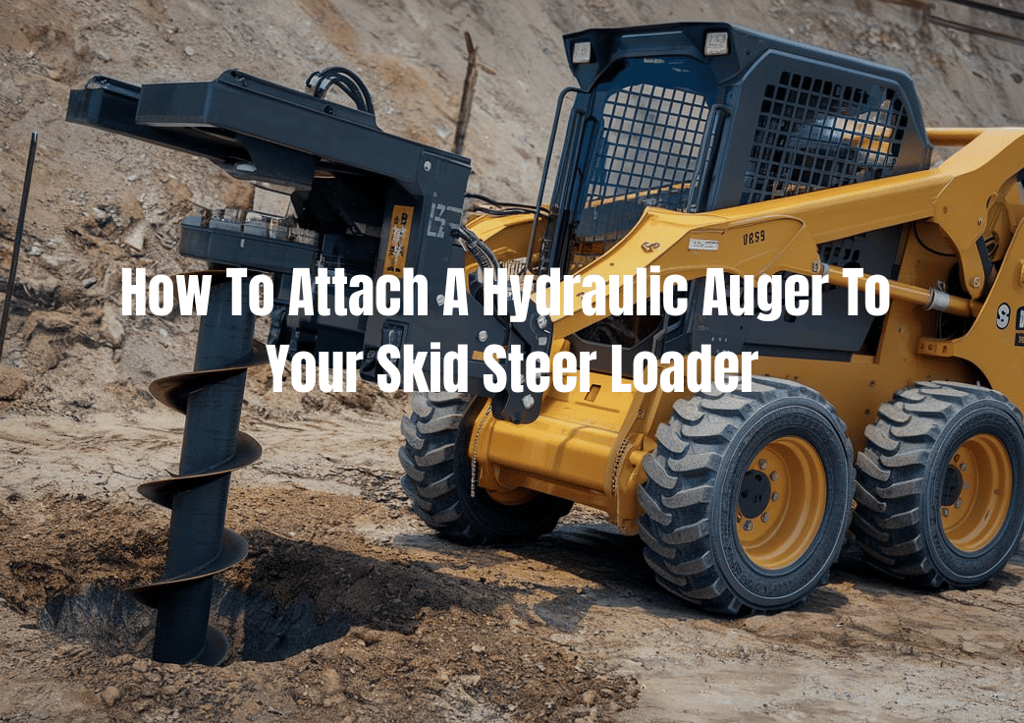

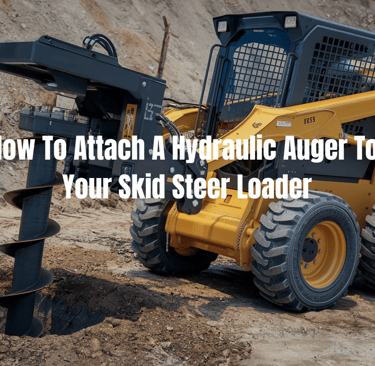

A skid steer loader is the most versatile and powerful machine on the site. It allows you to complete various tasks quickly and comes with multiple attachments for different purposes. The hydraulic auger is one of the attachments for a skid steer loader, perfect for digging holes, planting trees, or installing foundations. Attaching a hydraulic auger to your skid steer loader is straightforward if you follow the proper steps and safety measures.
This guide explains how to attach a hydraulic auger to your skid steer loader and provides helpful tips for getting the most out of this handy attachment.
What Is a Hydraulic Auger?
A hydraulic auger is an attachment powered by your skid steer loader’s hydraulic system. It consists of a large, rotating drill bit that digs into the ground as the hydraulic system spins it. Hydraulic augers come in different sizes, making them ideal for various applications, such as:
- Digging large holes for construction projects
- Smaller holes for landscaping
- Planting trees
- Installing foundations
Why Attach a Hydraulic Auger?
There are several reasons to use an auger. Here are just a few of the benefits:
- Efficiency: Augers can help to dig precise holes much faster than manual digging, saving you time and labor.
- Versatility: Different auger bits allow you to dig holes of various sizes, from small post holes to large foundation holes.
- Power: Hydraulic augers use the power of your skid steer’s hydraulic system, making them capable of digging in tough soil conditions where other tools may fail.
Tools and Safety Equipment You’ll Need
Before attaching the hydraulic auger, gather the necessary tools and safety equipment:
- A compatible skid steer loader
- A hydraulic auger attachment
- Hydraulic hoses and quick couplers
- Work gloves
- Safety glasses
- A wrench set
Step-by-Step Guide to Attaching a Hydraulic Auger
Step 1: Position the Skid Steer Loader
First, park the skid steer loader on level ground. This will help ensure stability and make the attachment process safer. Turn off the engine and engage the parking brake to prevent the loader from moving.
Step 2: Remove the Current Attachment
If there is already an attachment on your skid steer loader, you must remove it first. Skid steers have a quick-attach system, allowing you to switch between attachments easily. To remove the current attachment:
- Lift the attachment slightly off the ground using the skid steer’s hydraulics.
- Lower the locking levers on both sides of the loader’s attachment plate.
- Back the skid and steer away from the attachment to detach it.
Step 3: Align the Hydraulic Auger
With the current attachment removed, position the hydraulic auger near the skid steer. Align the auger attachment plate with the loader’s quick-attach plate. Keep the area clear of obstructions to avoid accidents.
Step 4: Attach the Auger to the Skid Steer
Slowly drive the skid steer forward to align the attachment plates properly. Once the plates are aligned:
- Raise the skid steer’s arms slightly to lift the auger attachment.
- Flip the locking levers on the quick-attach plate to secure the auger in place.
- Before proceeding, make sure the attachment is securely locked. Test the locking levers by lifting and lowering the drill to ensure it doesn’t wobble or come loose.
Step 5: Connect the Hydraulic Hoses
The hydraulic system powers the auger attachment, so the next step is to connect the hydraulic hoses:
- Find the hydraulic ports on both the skid steer and the auger.
- Clean the hydraulic couplers on the auger and the loader to prevent dirt or debris from entering the hydraulic system.
- Attach the hydraulic hoses from the auger to the skid steer’s hydraulic ports. Most skid steers are equipped with quick-connect couplers that make this process easy.
- Double-check that the hoses are firmly connected and there are no leaks.
Step 6: Test the Auger
Once everything is attached and connected, it’s time to test the hydraulic auger. Start the skid steer loader and engage the hydraulics to power the auger. Slowly rotate the auger to ensure it spins correctly and smoothly.
If everything works as expected, congrats! you’re ready to use the auger. If you notice any issues, such as leaks or irregular movement, turn off the skid steer and inspect the connections before proceeding.
Tips for Using a Hydraulic Auger Safely
Now that your hydraulic auger is attached, here are some important safety tips to keep in mind while using the attachment:
- Safety: Always wear gloves, safety glasses, and steel-toed boots when operating heavy machinery.
- Keep a safe distance: Ensure that all bystanders are safe from the skid steer and auger while it’s in operation.
- Check the soil condition: If the ground is rocky or hard, consider using a heavy-duty auger bit designed for tough digging conditions.
- Avoid overloading the drill: Don’t force it if it struggles to dig. Trying to push the auger through tough soil can cause damage to both the auger and the skid steer. Instead, lift the auger slightly and allow it to dig slowly.
- Inspect the auger regularly: After each use, check the auger for signs of wear or damage. Clean the attachment thoroughly to remove dirt, debris, or oil buildup.
Maintenance Tips for Your Hydraulic Auger
Regular maintenance is key to keeping your hydraulic auger in top working condition. Here are some basic maintenance tips:
- Check the hydraulic hoses: Before each use, inspect the hydraulic hoses for signs of wear, cracks, or leaks.
- Lubricate moving parts: Make sure to grease any moving parts of the auger to prevent friction and wear.
- Sharpen or replace the auger bit: If the auger bit becomes dull, digging can become more difficult and strain the hydraulic system. Sharpen the bit regularly or replace it if necessary.
Conclusion
Attaching a hydraulic auger to your skid steer loader is straightforward and greatly enhances its versatility. With the right tools and a careful approach, you can easily swap attachments and start digging holes efficiently and precisely. By following the steps outlined in this guide, along with the recommended safety tips and maintenance advice, you can use your hydraulic auger safely and effectively for a wide range of projects.
